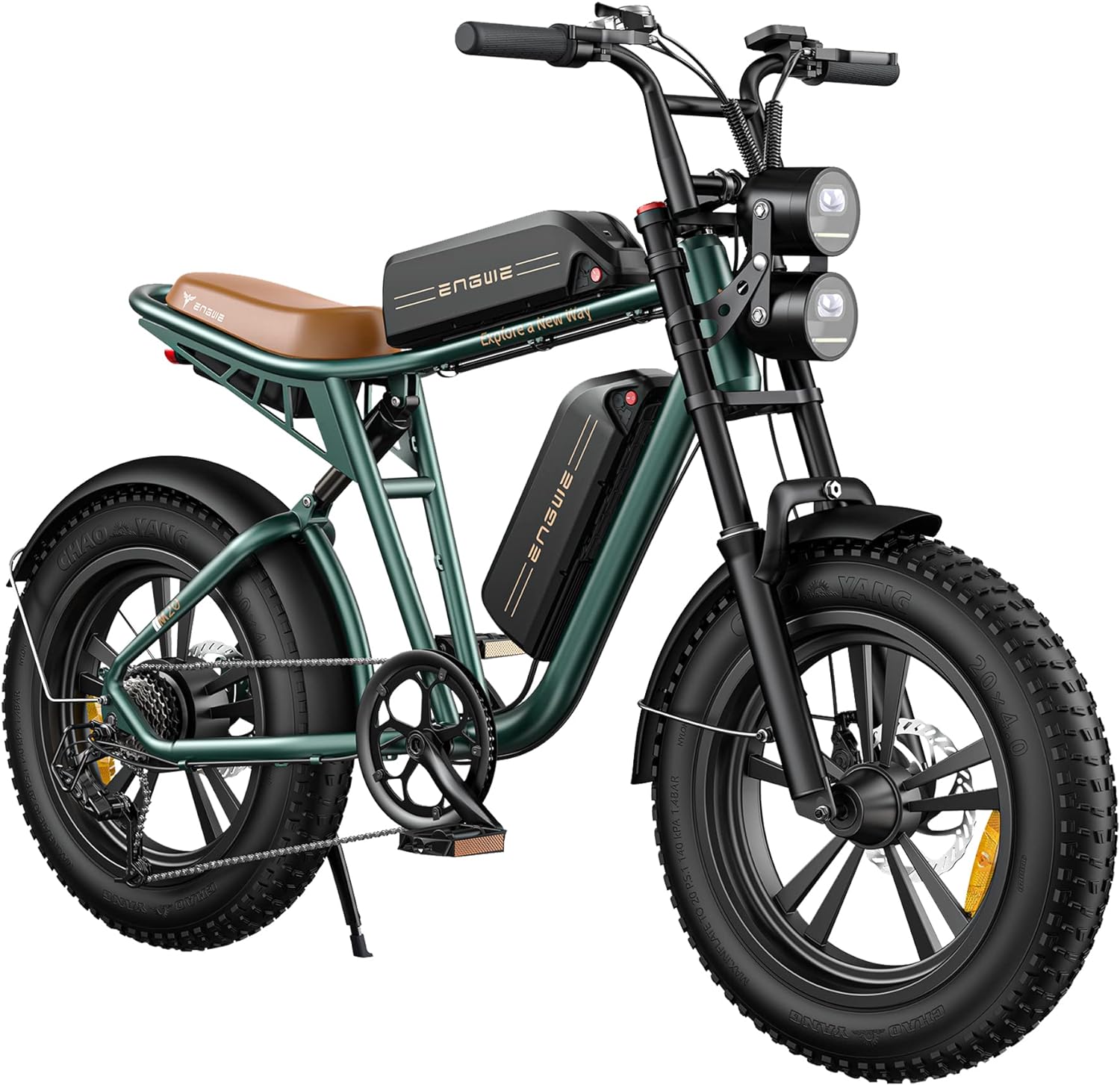

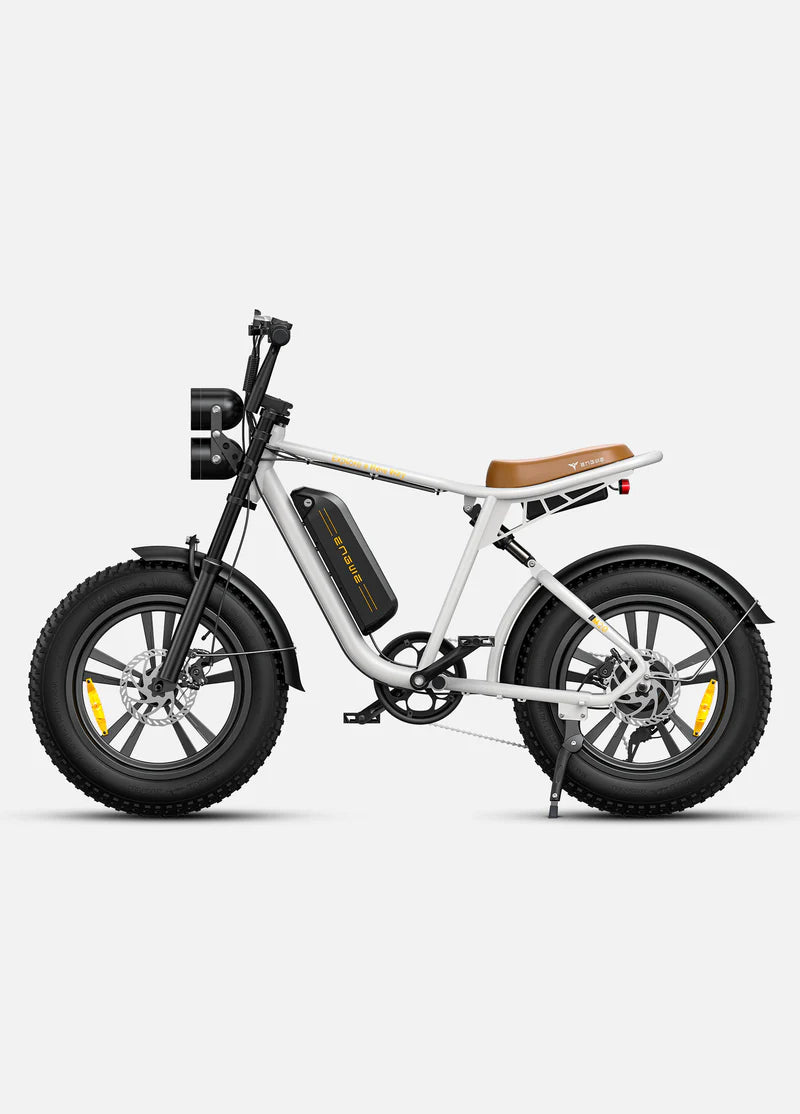

ENGWE M20 EBIKE

SPECIFICATIONS:

• Motor: 750W Brushless Motor
• Speed: 25 km/h (Speed can be unlocked)
• Material: 6061 Aluminum Alloy
• Torque: 55 N.m
• Tires: 20 x 4.0 Fat Tires
• 13Ah Battery Version: 48V13Ah Lithium-Ion Battery *1
• 26Ah Batteries Version: 48V 13Ah Lithium-Ion Battery *2
• Max Mileage: 34.17 Miles (55KM) at Electric Mode 1 and 46.6 Miles (75KM) at PAS mode 1
• Charging Time: About 5H
• Maximum Climbing degree: 10°
• Brake: 160mm Front & Rear Disc Machine Brake
• Transmission System: Shimano 7 Gears
• Display: LCD Display
• Bike Weight: 76.72lbs (34.8KG)
• 13Ah Battery Version Gross Weight: 94.13lbs (42.7KG)
• 26Ah Battery Version Gross Weight: 104.05lbs (45.9KG)
• Rider Height: 5.0 (ft) -6.8 (ft)
• Payload Capacity: 120 kg (264lbs)
• Package Dimensions (LWH): 140*33*87 cm

  WHATS IN THE BOX:



  13Ah Battery Version

  • M20 E-bike *1
  • 48V13Ah Lithium-Ion *1
  • Battery Charger *1
  • Assembly Tools *1
  • Pedals *2
  • Handle Bars Shipped Installed On Bike *1
  • User Manual *1



  26Ah Battery Version

  • M20 E-bike *1
  • 48V13Ah Lithium-Ion *2
  • Battery Charger *1
  • Assembly Tools *1
  • Pedals *2
  • Handle Bars Shipped Installed On Bike *1
  • User Manual *1



    How to assemble M20 e-bike?

    Please click here to view the instructional bike assembly video for the M20.

    How to install the second battery in the M20?

    Please click here to view the instructional video for installing the second battery in the M20.

    M20 User Manual?

    Please click here to view the M20 User Manual.

    How dual batteries work?

    1. When a second battery is installed, a button next to the battery can be pressed to switch it on.
    2. When both batteries are turned on, the bike will automatically use them collectively.
    Please note: The higher voltage and power of the two batteries will be used first, the power of both batteries will be used at the same time when the voltage and power of the two batteries are at the same level. For example: one battery voltage and power at 50, other at 40. The voltage and power of the battery with 50 will be used first, when used to 40, both batteries will be used together until the power is run out.

    Where is the second battery mount?

    The second battery comes packaged with its own battery mount. The second battery and the e-bike are sold separately.

    My M20 won’t turn on or is losing power while riding?

    Please click here to view an instructional video on solving these issues.

    Unboxing and general bike setup?

    Unboxing the M20
    M20 Throttle activation
    M20 Throttle deactivation
    How to restore the M20 to factory default
    How to adjust the speed limit
    Dual battery installation guide
